Three side tippers and low bed trailer with slide-in ramps – Types & Models

We offer the machine transport trailers in the following different versions (varnished or galvanized) – most of the models have a COC / EC type approval!

Total weight 5000 kg, Order number 845/5000, PL approx. 3100 kg, loading measures inside approx. 4000×2300 mm,
loading height unloaded approx. 850 mm

Data sheet 845-5000

Three-side tipper model 845/5000 with galvanized chassis and tool box

Total weight 8900 kg, Order number 863/8900, PL approx. 6450 kg, loading measure inside approx. 4500×2300 mm,
loading height unloaded approx. 880 mm

Type sheet 863-8900

Three-side tipper model 863/8900 with galvanized chassis and warning signs

Total weight 11900 kg, Order number 884/11900, PL approx. 9200 kg, loading measures inside approx. 4500×2300 mm;
optionally 4500×2420 mm, loading height unloaded approx. 930 mm

Data sheet 884-11900

Three-side tipper model 884/11900 with galvanized chassis, tyres 355/60R19,5, double storage box, nethooks and spring lifters

Total weight 14000 kg, Order number 887/14000, PL approx. 10750 kg, loading measures inside approx. 4500×2420 mm,
loading height unloaded approx. 1040 mm, twin wheels

Data sheet 887-14000

Three-side tipper model 887/14000 with spare tyre and support frame for excavator shovel

Total weight 14000 kg, Order number 888/14000, PL approx. 10850 kg, loading measures inside approx. 4500×2420 mm,
loading height unloaded approx. 1100 mm

Data sheet 888-14000

Tandem three side tipper model 888/14000 with galvanized chassis, big tyres 385/55 R 19,5 and spring lifters

Total weight 18000 kg, Order number 889/18000, PL approx. 14000 kg, loading measures inside approx. 5000×2420 mm,
loading height unloaded approx. 1110 mm, twin wheels

Type sheet 889-18000

Tandem-three side tipper model 889/18000 with twin wheels, spring lifters and spare tyre holder

Tandem three-way tipper type 890/18000-2 loaded to 19 tonnes with 14 tonnes payload – with automatic tailgate opening! Total weight 19000 kg
Payload approx. 14040 kg
Loading dimensions inside approx. 5500 x 2420 mm x 600 mm
Unloaded loading height approx. 1130 mm
Height-adjustable drawbar with 50 mm towing eye
EBS brake system “Multivoltage” with TEM and tyre pressure control
HARDOX floor grade 450
Reinforced underride guard with integrated lighting, 24V, 15-pin plug connection
12 tonne geared support winch with load and fast gear
Galvanised chassis, tipper body painted in white aluminium RAL 9006
Sliding aluminium loading rails with 10000kg load capacity
Wide tyres 385/55 R 22.5
Spring lifters on side drop sides

Additional equipment:
Hot-dip galvanised chassis
Rear dropside as two-part hinged door instead of the one-part rear wall, swinging
Automatic tailgate opening, pneumatic: swinging tailgate is automatically unlocked or closed when tipping backwards!
Tool box 750x350x360 made of plastic, lockable
Net hook
1 pair of recessed lashing eyes (7000daN) in the rear corners



Data sheet 890-18000-2  2025




Exhibition trailer Bauma 2025: Three-side tipper model 890/18000-2

    Datenschutzhinweise siehe Datenschutzerklärung.

    Our strong type with single wheels:

    Total weight 18000 kg, Order number 890/18000-2, PL approx. 13500 kg, loading measures inside approx. 5500×2420 mm,
    loading height unloaded approx. 1130 mm, with sidewalls 600mm high, wheels 385/55 R 22,5 and parabolic springs and 10t ramps underneath the loading area

    Data sheet 890-18000-2

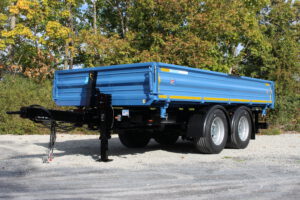

    Three side tipper model 890/18000-2

    All three side tippers can be delivered in the desired length and colour and can be equipped with

    • tool boxes
    • net hooks
    • spare tyre and holder
    • rotary head with alternatively 40mm and 50mm drawbar eyes
    • support frame for excavator and crawler shovel at front wall
    • additional or different lashing points
    • additional sidewalls in different styles and heights
    • double wing door
    • galvanized chassis

    Please just ask us!
