Low bed trailer type & models
We offer the machine transport trailers in the following different versions (varnished or galvanized) – most of the models have a COC / EC type approval!
Total weight 5000 kg, Order No. 645/5000, PL approx. 340 kg, Loading measure inside approx. 4000x2300mm,
Loading height unloaded approx. 810mm
Low bed trailer model 645/5000 with galvanized chassis and nethooks
Total weight 8900 kg, Order No. 652/8900, PL approx. 6650 kg, Loading measure inside approx. 5000×2450 mm,
Loading height unloaded approx. 850 mm
Tandem Low Bed trailer model 652/8900 with spring lift support, grids in the ramps and steel border between ramps
Total weight 11900 kg, Order No. 664/11900, PL approx. 9200 kg, Loading measure inside approx. 5000×2450 mm,
Loading height unloaded approx. 880 mm
Tandem Low Bed Trailer model 664/11900 with galvanized chassis, divided sidewalls, grids in ramps and border between steel ramps
Total weight 11900 kg, Order No. 674/11900, PL approx. 9200 kg, Loading measures inside approx. 5000×2450 mm, Loading height unloaded approx. 850 mm, twin wheels
Total weight 14000 kg, Order No. 682/14000, PL approx. 10800 kg, Loading measures inside approx. 5000×2450 mm,
Loading height unloaded approx. 900 mm, twin wheels
Tandem Low Bed Trailer model 682/14000 with galvanized chassis, divided sidewalls, grids in ramps, steel bulb floor and steel metal box at front
Tandem low loader type 682/14000, twin tyres – also for container transport!
Total weight 14000 kg (can be loaded up to 15000 kg with 50 mm drawbar eye)
Payload approx. 10250 kg (loaded 11250kg)
Loading dimensions inside approx. 6300 x 2450 mm
Unloaded loading height approx. 900 mm
Height-adjustable drawbar with 40 mm towing eye, extended
EBS braking system “Multivoltage” with TEM
40 mm thick larch wood floor
Reinforced underride guard with integrated lighting, 24V, 15-pin plug connection
12 tonne geared support winch with load and fast gear
Additional equipment:
Hot-dip galvanised chassis, hot-dip galvanised drawbar, cables laid in the tube
Drop sides made of aluminium profiles
Split drop sides, plug-in centre stanchions
Drop sides and ramps painted in pure white, RAL 5015 sky blue
Outer profile with double hole pattern “VarioFrame”, lashing force 2000daN or 2500daN
2 pairs of swivelling lashing recesses (4000daN) in the side profile
1 pair of container locks in the front corners
Ramps extended to 2.70m, bevelled edge extended to 1.30m => very low drive-on angle of 12°!
Widened access ramps to 700mm, can be pushed together to a gap of approx. 8cm
Galvanised grating in the ramps with additional spring as lifting support
Lever adjustment for ramps, hot-dip galvanised
2 plastic toolboxes 750x350x360mm
Full LED lighting, 24V, 15-pin plug connection

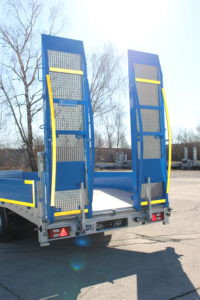

Exhibition trailer Bauma 2025: Tandem Low Bed Trailer model 682/14000 with galvanized chassis, aluminum side walls, grids in the ramps and container locks
Total weight 18000 kg, Order No. 688/18000, PL approx. 14000 kg, Loading measures inside approx. 6200×2450 mm,
Loading height unloaded approx. 980 mm, twin wheels (loading height also possible of about 870mm!)
Tandem Low Bed Trailer model 688/18000 with galvanized chassis, warning signs and grids in ramps, front protection
Total weight 21000 kg, Order No. 687/21000, PL approx. 16800 kg, Loading measure approx. 6200×2450 mm,
Loading height unloaded approx. 1020 mm, twin wheels, distance between axles > 1,80m (also a loading height of approx. 870mm possible!)
Tandem Low Bed Trailer model 687/21000 with front wall elevation, rotating beacon, extendable warning signs, additional LED backing lights, without sidewalls, big tool box

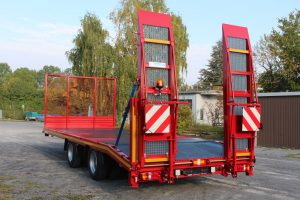

Tandem low loader type 687/21000, twin tyres – with only 12° drive-on angle and 16300 kg payload
Total weight 21000 kg
Payload approx. 16360 kg
Loading dimension inside approx. 7000 x 2450 mm
Unloaded loading height approx. 870 mm (through cross member in side member), can be lowered to approx. 810 mm for loading
Height-adjustable drawbar for two heights
EBS braking system “Multivoltage” with TEM
Double wooden floor: 44 mm spruce wood floor + 24 mm sieve pressure floor
Reinforced underride guard with integrated lighting, 24V, 15-pin plug connection
12t geared support winch with load and fast gear
Additional equipment:
Hot-dip galvanised chassis, hot-dip galvanised drawbar, cables laid in the tube
Split drop sides, plug-in centre stanchions
Drop sides and ramps painted in deep orange, RAL 2011
Ramps extended to 2.70 m, bevelled edge extended to 1.30 m => very low drive-on angle of 12°!
Galvanised gratings in the ramps with additional spring as lifting support
Ramp lever adjustment
2 toolboxes: one made of sheet steel on the front wall, one made of plastic 800x400x490mm
2 additional LED reversing lights
Full LED lighting, 24V, 15-pin plug connection
Connection bracket and rotating beacon
Tandem Low Bed Trailer model 687/21000 with 2x height-adjustable drawbar, galvanized
Total weight 25000 kg, Order No. 689/25000 Tridem, PL approx. 20000 kg, Loading measures approx. 6200×2450 mm,
Loading height unloaded approx. 1020 mm, twin wheels, (also loading height of about 960mm possible!)
Tridem Low Bed Trailer model 689/25000 with extendable warning signs, steering axle, air suspension, hydraulic ramps lifters with electrical pump, widening to 3,0m above wheels for oversize load
Our Low bed trailer models with inserted ramps made of aluminium
Total weight 8900 kg, Order No. 692/8900, PL approx. 6800, Loading measures inside approx. 5000×2450 mm,
Loading height unloaded approx. 850 mm
Tandem Low Bed Trailer model 692/8900 with insertable ramps underneath the loading area, with support frame for excavator shovel and tool box
Total weight 11900 kg, Order No. 695/11900, PL approx. 9400 kg, Loading measures inside approx. 5000×2450 mm, Loading height unloaded approx. 880 mm
Tandem Low Bed Trailer model 695/11900 with 600mm high aluminium sidewalls plus additional alu sidewalls 400mm, with extendable warning signs, additional LED backing lights, tool box and net hooks
All Low Bed trailers can be delivered in the requested length or colour and can be equipped with
- toolboxes
- net hooks
- spare tyre and holder
- rotary head with alternatively 40mm and 50mm drawbar eyes
- support frame for excavator and crawler shovel at front wall
- additional or different lashing points
- floor made of steel bulb plate
- ramp lifters made of springs
- galvanized grids in the ramps
- galvanized chassis
- container locks
- front wall heightened
- aluminium-sidewalls
Please just ask us!
